Product Introduction

Specifications :

Dimension 125 x 64 x 27 (mm)
Weight 116gm (battery included)
Channel two independent channels
Power supply 9V battery x 1 pcs
Output 0~120mA P to P into 500Ω load
Rate 1~100Hz
Function mode
  cycle time on time off time
f3 continue continue 0
f2 4 seconds 2 seconds 2 seconds
f1 8 seconds 4 seconds 4 seconds
Pulse width 250µs (fixed)

Standard Accessories :

Electrical Stimulator 1
Stimulator Lead Wire 2
Self Adhering Electrode 4
Operating Manual 1
9V Battery 1
Reusable Package Box 1

TENS electrode application areas :

The small electric pulses can contract the face muscles, improving the face peripheral blood circulation, increasing red corpuscles and raises the ability to carry oxygen. The cells organization and oxygen can be alternated sufficiently. Therefore, making the face fresh and ruddy.
Every muscle of the body gets small electric pulses. The muscles react to these pulses to do general contraction exercises. The continuous muscle exercise will make red corpuscles burn more energy and assist weight loss.
The small electric pulses are controlled by the unit and are divided into different massage "actions." The muscle contraction will be beat, hit, pinch, push, press, grab, and packing. Every different massage "action." The change is very sufficient and the feeling is more comfortable than massage done by people.
The small electric pulses can release the over strained muscles or nerves. They improve the peripheral blood circulation, increase the density of red corpuscles and produce endorphins to control pain, thus massage internal organs to function normally.

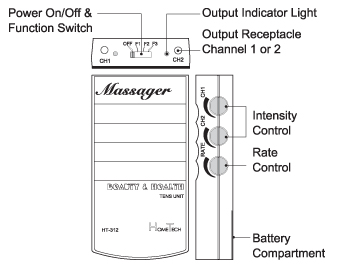

Indicator and Controls: :
