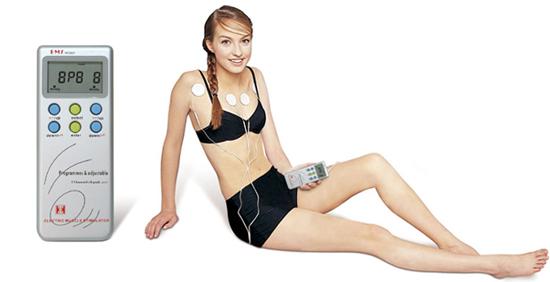

HT326L9_series

Features & Functions :

• Effective in helping to manage particular pain problems.
• Use to assist treatment of headache, toothache, back pain, tennis elbow, sport strains and muscle injuries.
• Relieving soreness in the applied area.
• Helps to strengthen and tone muscles.
• When the unit starts operation or the program has been changed. The intensity level ("density") will return to "0" .
• When the unit starts operation, the intensity ("density") output has been designed with a gradual 3 seconds raise ramp.
• When timer has reached 0 min. Unit will auto-shut down. The unit can remember last setting.
• If intensity levels ("density") are at "0" and unit is not being used, it will automatically shut down after 3 mins.
• P1~P9 timer is programmed 30 mins with backward count down.
• Screen will exchange display timer/mode/on time/rate/off time/density ("density"=intensity) every 3 secs.
• The unit is designed with a buzzer to assist operation.

Specifications :

Dimension	150 x 60 x 21 (mm)
Channel	two independent channels
Power supply	1.5V (size AA) battery x 3 pcs
Output	0~100mA P to P into 500Ω load
Density(Intensity)	change of 15 steps pulse amplitude
Timer	30 (default) or 01~120 minutes (for set up)
Wave form	dual phases square wave
Display	timer/mode/cycle/on time/rate/off time/density ("density"= intensity)

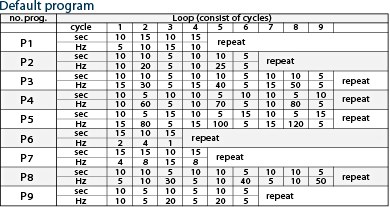

Mode	default program P1~P9(fixed) &  edit loop program"01"~"09"： 1~12 cycles(maxium) in every  edit loop program can be set Rate：00Hz~120Hz ("00" the meaning is end set up)  Contraction(on time)：1sec.~30sec. Relaxation (off time)：0sec.~30sec.
Ramp up	3 seconds
Buzzer	3 different reminders 1.Correct single beep  2.Pay attention triple beep 3.Mistake continue beep
Output load detect	alarm in operation without connect lead wire
Pulse wave form

Standard Accessories :

TENS electrode application areas :

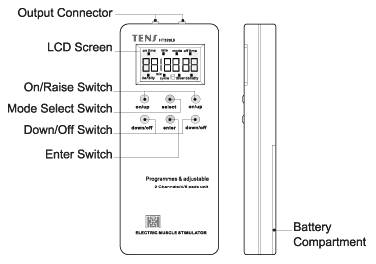

Indicator and Controls: :
