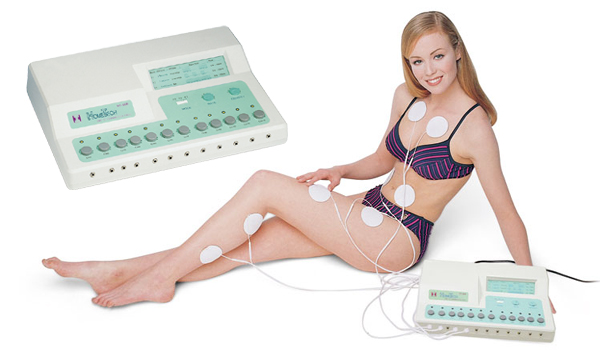

Product Introduction



Features & Functions :

  • 12 channels output with independent transformer.
  • 3 muscle fitness modes use for exercise trainning.
  • 1 total intensity knob control multi-channels output.

Specifications :

Dimension 370 x 270 x 75 (mm)
Weight 1800gm
Power supply 110V/230V AC
Channel 12 independent isolated transformers
Input current 1000mA/110V; 1000mA/230V maximum
Output current 0~100mA P to P into 500Ω load
Rate 1Hz~100Hz
Width 250uS

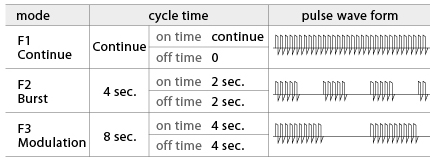

Function mode
Selected by slide switch "MODE"; F1, F2, F3, three mode.

Standard Accessor :

Electrical Stimulator 1
Stimulator Lead Wire      12
Self Adhering Electrode     24
Operating Manual 1
1.5V(SUM-2) Battery 6
Reusable Package 1
AC adaptor(Brand:SCN
Type: 48-090-0600)CE


TENS electrode application areas :

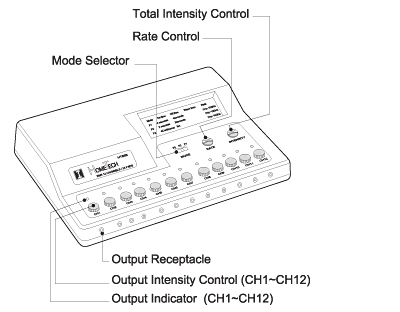

Indicator and Controls :
