HT329L5_series
Product Introduction
Features & Functions :
- Effective in helping to manage particular pain problems.
- Relieving soreness in the applied area.
- Helps to strengthen and tone muscles.
- When the unit starts operation or the program has been changed. The intensity level ("density") will return to "0" .
- When the unit starts operation, the intensity ("density") output has been designed with a gradual 3 seconds raise ramp.
- When timer has reached 0 min. Unit will auto-shut down. The unit can remember last setting.
- If intensity levels ("density") are at "0" and unit is not being used, it will automatically shut down after 3 mins.
- P1~P0 timer is programmed 30 mins with backward count down.
- Screen will exchange display density/mode/timer every 3 secs.
Specifications :
| Dimension | 55 x 42 x 10 (mm) |
| Channel | single channel output |
| Power supply | 3V CR2025 battery 1 pc |
| Output | 0~90mA P to P into 500Ω load |
| Density(Intensity) | change of 15 steps pulse amplitude |
| Timer | 30 minutes to auto turn off |
| Wave form | dual phases square wave |
| Display | LCD display with timer/mode/density ("density"=intensity) |

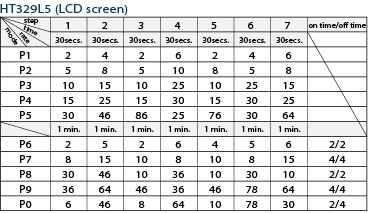

| Mode | according to the table below |
Specifications :

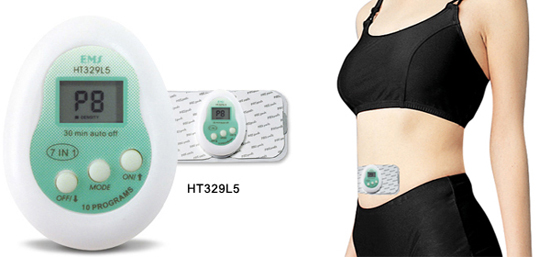

HT329L5 Pad Set HT329L5 Slim Belt Set
