HT329L6_series
Product Introduction
Features & Functions :
- 6 isolated microprocessors with 6 individual LCD.
- Each channel can be programmed individually to allow user to work on 6 different areas at the same time.
- A master button for controlling all 6 channels for use with the same program at the same time.
- With 5 TENS programs and 5 EMS programs, each program with 7 optional steps.
- Can be used with adaptor or batteries.
Specifications :
| Dimension | 260 x 170 x 65 (mm) |
| Weight | 1045gm (battery included) |
| Power supply | 9V batteries or DC/AC adaptor |
| Channel | 6 independent microprocessors control 6 channels |
| Input current | DC 9V maximum |
| Output current | 0~90mA P to P into 500Ω load |
| Density(Intensity) | change of 15 steps levels |
| Timer | 30 minutes backward to auto off |
| Wave form | dual phases square wave |
| Pulse width | 250 microsecond |
| Ramp up | 3 seconds (at 2Hz) |
| Rate | 2 Hz~86Hz Contraction (on time) 2sec, 4sec. Relaxation (off time) 2sec, 4sec. |
| LCD display | 6 independent LCD display timer/mode/density |
| Buzzer | 2 different reminders 1.correct single beep 2. pay attention long beep |

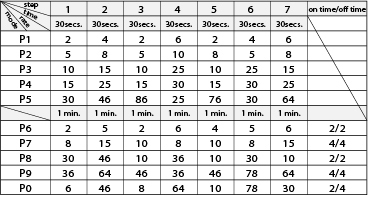

| Function mode | program P1~P5 TENS massager, P6~P0 fitness EMS |
Standard Accessories :
| Electrical Stimulator | 1 |
| Stimulator Lead Wire | 6 |
| Self Adhering Electrode | 12 |
| Operating Manual | 1 |
| 9V Battery | 2 |
| AC/DC Adaptor 9V DC | 1 |
| Reusable Package | 1 |
TENS electrode application areas :

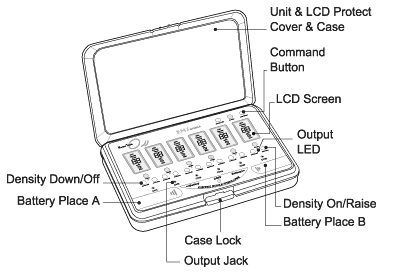

Indicator and Controls :
