HT329L_series
Product Introduction
Features & Functions :
- Effective in helping to manage particular pain problems.
- Use to assist treatment of headache, toothache, back pain, tennis elbow, sport strains and muscle injuries.
- Relieving soreness in the applied area.
- Helps to strengthen and tone muscles.
- When the unit starts operation or the program has been changed. The intensity level ("density") will return to "0" .
- If intensity levels ("density") are at "0" and unit is not being used, it will automatically shut down after 3 mins.
- P1~P0 timer is programmed 30 mins with backward count down.
- Screen will exchange display density/mode/timer every 3 secs.
Specifications :
| Dimension | 170 x 60 x 26 (mm) |
| Channel | two independent channels |
| Power supply | 9V battery x 1 pc |
| Output | 0~100mA P to P into 500Ω load |
| Density(Intensity) | change of 15 steps pulse amplitude |
| Timer | 30 minutes countdown timer with auto off |
| Wave form | dual phases square wave |
| Display | LCD display with timer/mode/density ("density"=intensity) |
| Mode | 10 programs, P1~P5 TENS, P6~P0 fitness EMS |
| Ramp up | 3 seconds |
| Buzzer | 2 different reminders 1.Correct: single beep 2.Caution: long beep |

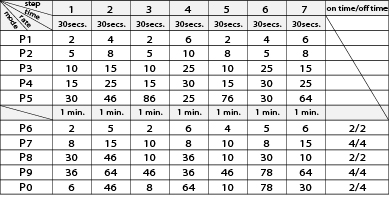

| Pulse wave form |  |
.jpg)
Standard Accessories :
| Electrical Stimulator | 1 |
| Stimulator Lead Wire | 2 |
| Self Adhering Electrode | 4 |
| Operating Manual | 1 |
| 9V Battery | 1 |
| Reusable Package Box | 1 |
TENS electrode application areas :
.jpg)

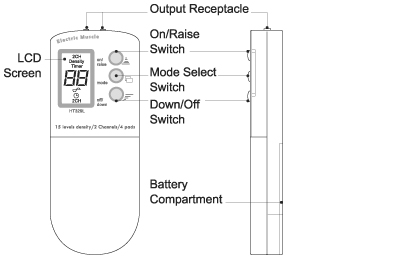

Indicator and Controls: :
