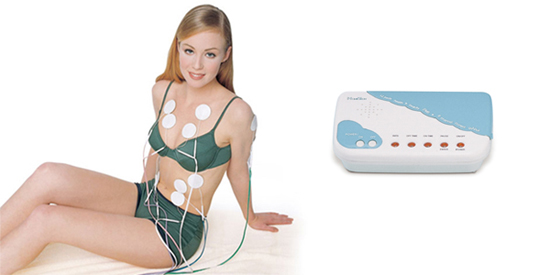

HT331B_series
Product Introduction
Specifications :
Dimension | 200 x 120 x 51 (mm) |
Weight | 495gm (battery included) |
Power supply | 9V battery two pcs or AC/DC 9V/0.6A adaptor |
Channel | 6(6CH) independent isolated transformers |
Input current | 600mA(6CH) DC 9V maximum |
Output current | 0~120mA P to P into 500Ω load |
Timer | 15 minutes auto off |
Rate | 2, 5, 10, 20, 50, 70, 104, 127, 185, 300 Hz |
Medium freq. carry | 2kHz |

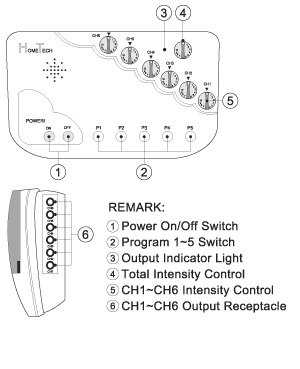

Function mode | Selected by push switch P1, P2, P3, P4, P5, for five mode functions. |
P1 | Two modes rate auto tranning; 5S, 3S, each cycle 8 minutes. |
P2 | Two modes rate tranning; 10Hz, 20Hz; per mode 1 second; each cycle 2 seconds, auto amplitude modulation. |
P3 | Two modes rate tranning; 50Hz, 104Hz; per mode 0.5 second; each cycle 1 second, auto amplitude modulation. |
P4 | Two modes rate tranning; 70Hz, 127Hz; per mode 0.5 second; each cycle 1 second, auto amplitude modulation. |
P5 | Two modes rate tranning; 185Hz, 300Hz; per mode 0.5 second; each cycle 1 second, auto amplitude modulation. |
Standard Accessories :
Electrical Stimulator | 1 |
Stimulator Lead Wire | 6 |
Self Adhering Electrode | 12 |
Operating Manual | 1 |
9V Battery | 2 |
9V DC Adaptor | 1 |
Reusable Package Box | 1 |
TENS electrode application areas :
|
|
|
|
