HT338Nseries
Product Introduction
Specifications :&nbnbsp;
| Dimension | 225 x 205 x 65;41 (mm) |
| Weight | 860gm (battery included) |
| Power supply | 1.5V battery(SUM-2)x6 pcs or adaptor 230V 50Hz (110Va x 60Hz) to DC 9V |
| Channel | 4(4CH) independent isolated transformers 6(6CH) independent isolated transformers 8(8CH) independent isolated transformers |
| Input current | 400mA(4CH); 500mA(6CH); 600mA(8CH); DC 9V maximum |
| Output current | 0~120mA P to P into 500Ω load |
| Timer | 15, 30 minutes auto off and continuous |
| Function mode | Selected by push switch "FUNCTION", P1, P2, P3, P4 four functions. |
| P1 | Four modes rate; R1~2Hz, R2~5Hz, R3~10Hz, R4~20Hz, per mode 1 minute, each cycle 4 minutes. |
| P2 | Three modes rate; R1~10Hz, R2~20Hz, R3~50Hz, per mode 1 minute, each cycle 3 minutes. |
| P3 | Three modes rate; R1~50Hz, R2~62Hz, R3~83Hz, per mode 1 minute, each cycle 3 minutes, auto amplitude modulation. |
| P4 | Three modes rate; R1~100Hz, R2~125Hz, R3~150Hz, per mode 1 minute, each cycle 3 minutes, auto amplitude modulation. |
Standard Accessor :
| Electrical Stimulator | 1 |
| Stimulator Lead Wire | 8 |
| Self Adhering Electrode | 16 |
| Operating Manual | 1 |
| 1.5V(SUM-2) Battery | 6 |
| Reusable Package | 1 |
| AC adaptor(Brand:SCN Type: 48-090-0600)CE |
1 |

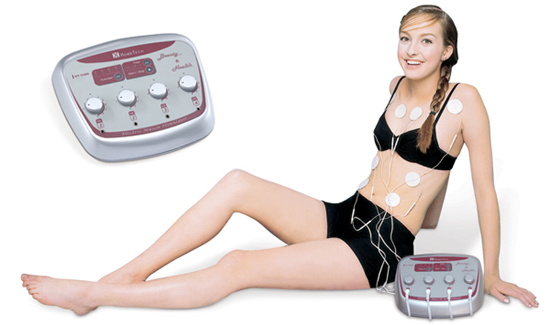

TENS electrode application areas :
.jpg)

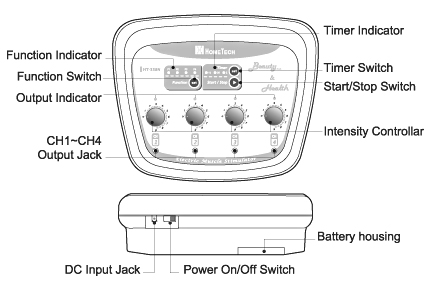

Indicator and Controls :
