Product Introduction


Specifications :

Dimension 200 x 145 x 72 ; 38 (mm)
Weight 785gm (battery included)
Power supply 1.5V battery(SUM-2) X 6 PCS.(DC 9V) or 9V DC adaptor
Channel 2(2CH) independent isolated transformers
4(4CH) independent isolated transformers
6(6CH) independent isolated transformers
8(8CH) independent isolated transformers
Input current 300mA(2CH) ; 400mA(4CH) ; 500mA(6CH) ;
600mA(8CH) DC 9V maximum
Output current 0~120mA P to P into 500Ω load
Timer 15, 30 minutes auto off and continuous
Function mode Selected by push switch "FUNCTION",
P1,P2,P3,P4 four functions.

Standard Accessories :

Electrical Stimulator 1
Stimulator Lead Wire 2
Self Adhering Electrode 4
Operating Manual 1
1.5V Battery 6
9V DC Adaptor 1
Reusable Package 1



TENS electrode application areas :

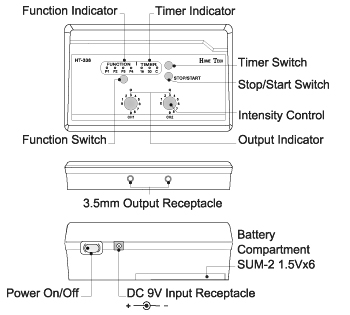

Indicator and Controls: :
