HT528_series
Product Introduction
Features & Functions :
- Large clear LCD which transmits function situation & operation condition
- Offers 40 uniquely composed programs each with 12 optional steps
- 90 function modes with a possible 20790 different combinations
- Special dynamic scan which helps muscles avoid becoming used to the same stimulation
- With four alarm settings to remind user of daily routines
Specifications :
| Dimension | 220 x 180 x 68;30 (mm) |
| Weight | 850gm (battery included) |
| Power supply | 230V 50Hz (110V AC 60Hz) to DC 9V adaptor or 9V x 2 Batteries |
| Channel | 4(4CH) independent isolated transformers 6(6CH) independent isolated transformers 8(8CH) independent isolated transformers |
| Input current | 300mA(4CH); 400mA(6CH); 500mA(8CH) DC 9V maximum |
| Output current | 0~120mA P to P into 500Ω load |
| Timer | 01~99 mins auto off and continuous |
| Program mode | "P0~P9" ; "U0~U9" ; "L0~L9" ; "o0~o9", total 40 programs |
| Function mode | "A1~A9"~"J1~J9" total 90 program modes ♦Rate : 2~150Hz ♦On time : 1...15 seconds ♦Off time : 0...10 seconds(11steps) ♦Scan Value : ± 0~50 % adjustable ♦Scan Type : 7 different types ♦Intensity Level : 20 steps ♦Pulse width：250uS ♦Combination forms: 20790 different forms |
| Ramp up | 10 seconds(intensity level from "0" to "20") |
| LCD display | Timer count down/program mode/on time/ off time/rate/scan type/scan level/intensity level |
| Buzzer | 4 different reminders 1. correct single beep 2. pay attention triple beep 3. mistake continue beep 4. reminder slow single beep |
Standard Accessories :
| Electrical Stimulator | 1 |
| Stimulator Lead Wire | 4 |
| Self Adhering Electrode | 8 |
| Operating Manual | 1 |
| 9V Battery | 2 |
| Reusable Package | 1 |
| AC adaptor(Brand:SCN Type: 48-090-0600)CE |
1 |

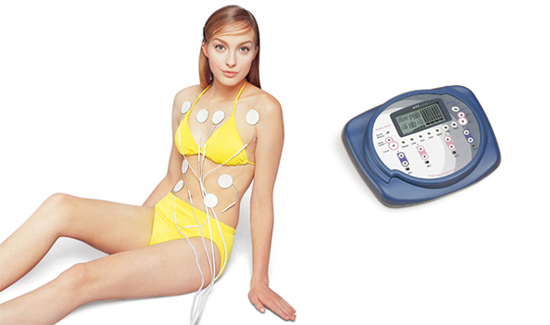

TENS electrode application areas :
.jpg)
Indicator and Controls :
