HT66_series
Product Introduction
Features & Functions :
- Two channel independent isolated output.
- Auto-programs and manual adjustment functions.
- Medium and low frequency whole field treatment.
Specifications :
| Dimension | 95 x 70 x 32 (mm) |
| Weight | 150gm (battery included) |
| Channel | two independent channels |
| Power supply | 9V battery x 1 pcs or 100V/AC/9V DC adaptor |
| Input current | 1000mA DC 9V maximum |
| Output current | 0~1000mA Peak to Peak into 500ohm load |
| Current type | medium frequency carrier 1KHz-5KHz, adjustable |
| Burst frequency | 0.5Hz~150Hz, adjustable |
| Burst width | 3mS~12mS |
| Pulse width | 0.2mS~1mS |
| Timer | 15, 30 minutes auto off and continuous |
| Mode selector | MA, MT, MM, B, C, M |

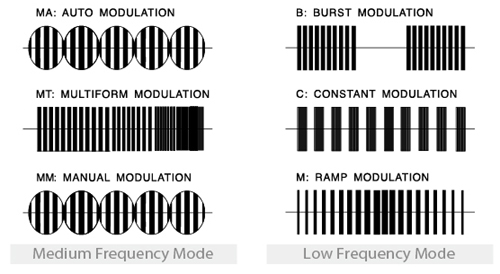

HT66 Wave form :
