Product Introduction

Electrode wires, Pin to snap connector, ECG or TENS wires, ESU grounding wires


TENS Wire Specification
1. Audio plug
ø 2.5mm/mono
ø 3.5mm/mono
ø 4.0mm/banana
ø 6.3mm/mono
2. Socket
ø 1.5mm
ø 2.0mm
ø 3.0mm
ø 4.0mm
3. Pin
ø 2mm
Wire diameter & length
ø 1.5mm
L: 90/120/150/200 (cm)
ø 2.0mm
L: 120/150/200 (cm)
ø 2.5mm
L: 120/150/200 (cm)
ø 3.0mm
L: 120/150/200 (cm)
1. Pin connector
ø 1.5mm
ø 2.0mm
ø 3.0mm
ø 4.0mm
2. Snap connector
ø 2.0mm (small)
ø 4.0mm (large)
3. Alligator clip
Electrode Wire Specification
1. Socket
ø 1.5mm
ø 2.0mm
ø 3.0mm
ø 4.0mm
Wire diameter & length
ø 1.5mm/1C
L: 125/175/210 (mm)
ø 1.5mm/2C
L: 400 (mm)
1. Copper
2. Plate

proimages/pp_1.jpg

 Electrode wires

proimages/pp_2.jpg

 Pin to snap connector

proimages/pp_3.jpg

 ECG or TENS wires

proimages/pp_4.jpg

 ESU grounding wires

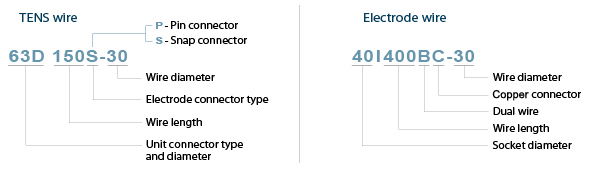

How to order (BOM) :
